Electric Bike Throttle With Lcd

Electric Bike Throttle with LCD Display – Product Description Summary

1. General Description

• Product Name: 36-72V Electric Bike Throttle Grip

• Package Includes: 1 Pair of Throttle Grips

• Color: Black

• Material: ABS plastic

• Cable Length: 170 cm

• Main Feature: Handle with integrated LCD display

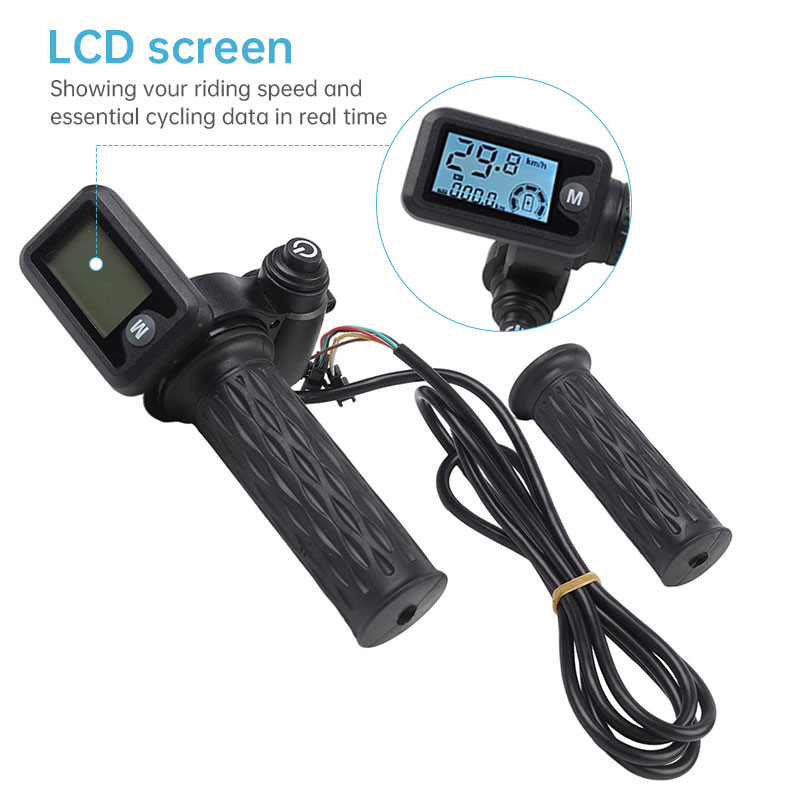

2. Display & Functions

• The display provides real-time readings for:

• Speed

• Mileage (Odometer)

• Current

• Voltage

• It shows Speed via a lane model representation

3. Compatibility & Electrical

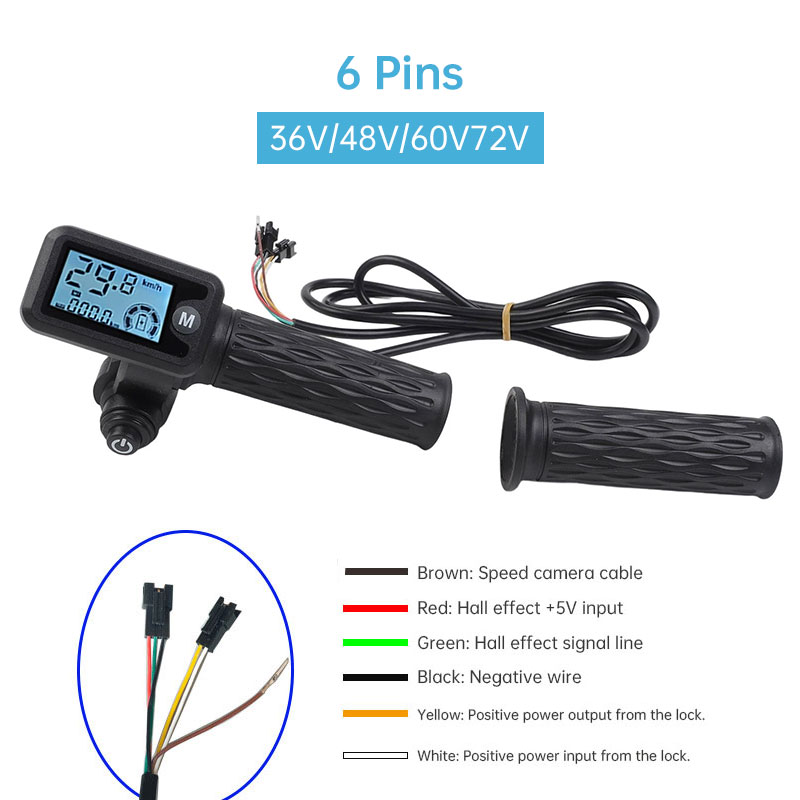

• Compatible Voltage: 36V, 48V, 60V, 72V

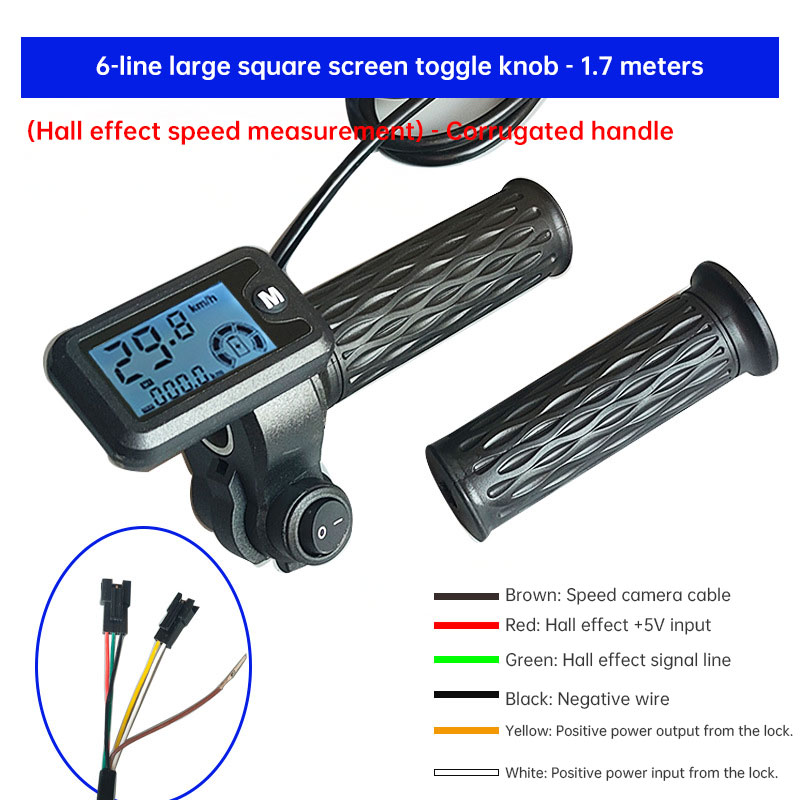

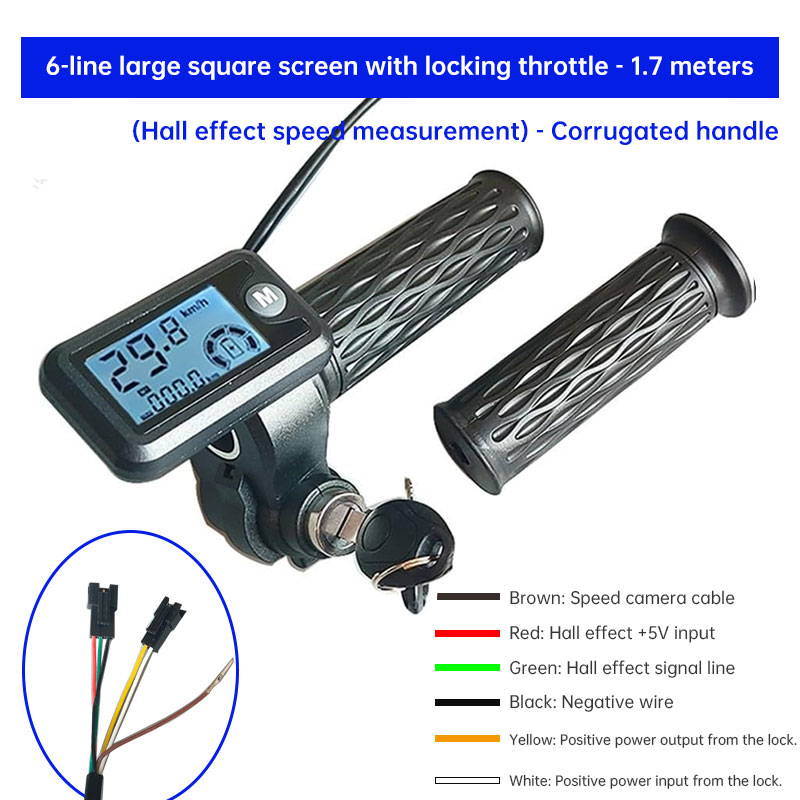

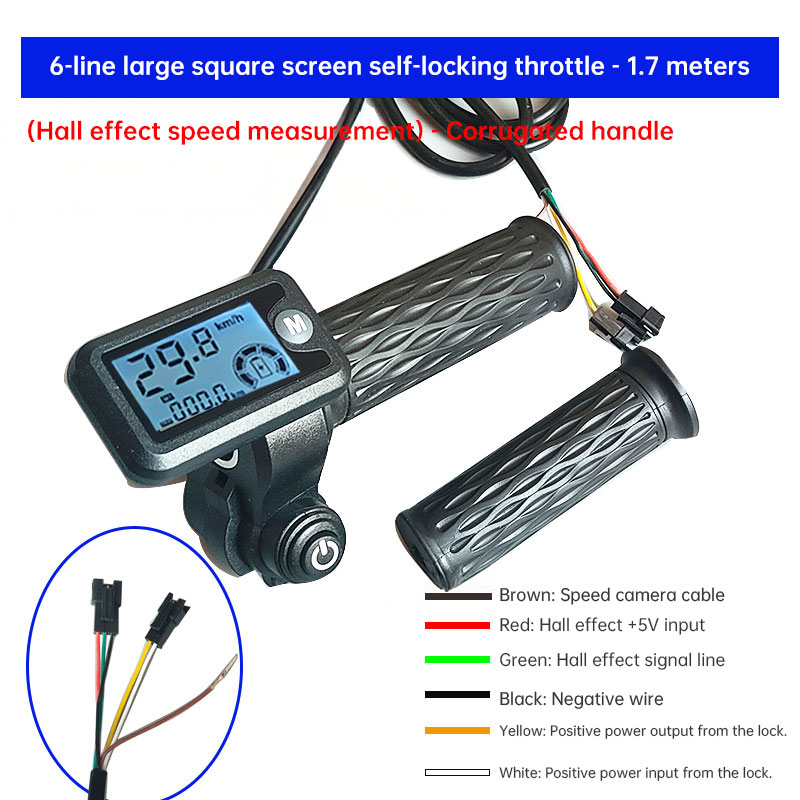

• Wiring Details:

• Brown Line: Speed line

• Red Line: 5V positive input for the Hall sensor

• Green Line: Hall signal line

• Black Line: Negative line

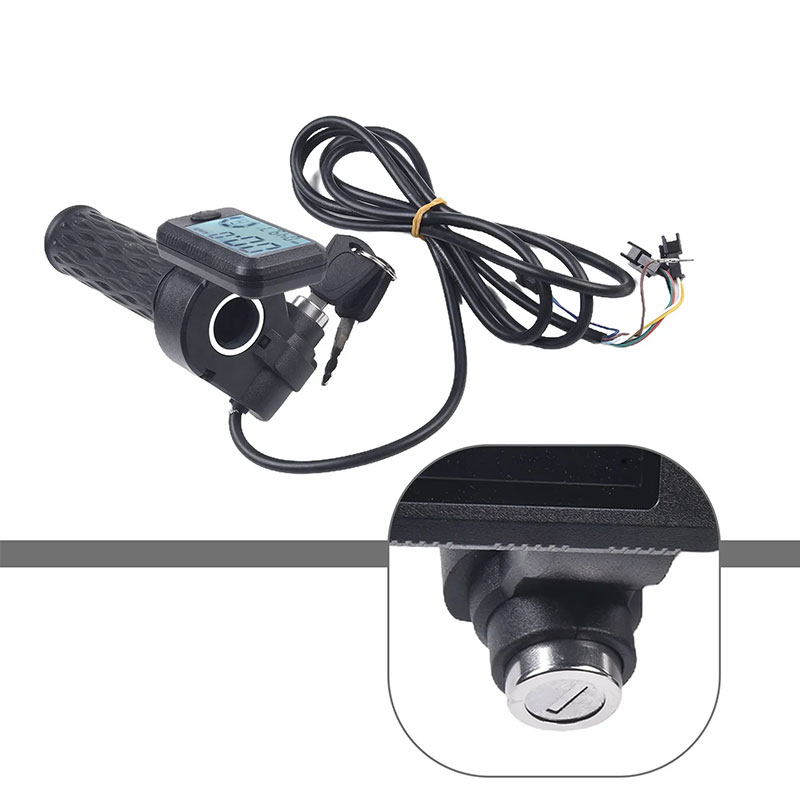

• Yellow Line: Positive power source for the lock (from the yellow wire)

• White Line: Positive power enters the lock (from the white wire)

4. Notes

• Color Disclaimer: Actual product color may vary slightly from website images due to monitor settings and lighting.

• Measurement Tolerance: Please allow for a slight deviation in manual measurements.
